SRAM S-300 Hydraulic Disc Brake – A1 – Front | Right

Flat Bar brake lever + Flat Mount brake caliper. The SRAM S300 disc brake system offers power, reliability and a low weight in one solid package.

To achieve all this, the hydraulic brake lever relies on technologies that have already proven themselves in the SRAM Guide models. Pistons, seals, reservoirs and bladders are inspired by MTB disc brakes and provide first-class modulation as well as a smooth pressure point for long-lasting confidence on every kilometer.

Features of the hydraulic SRAM S-300 disc brake

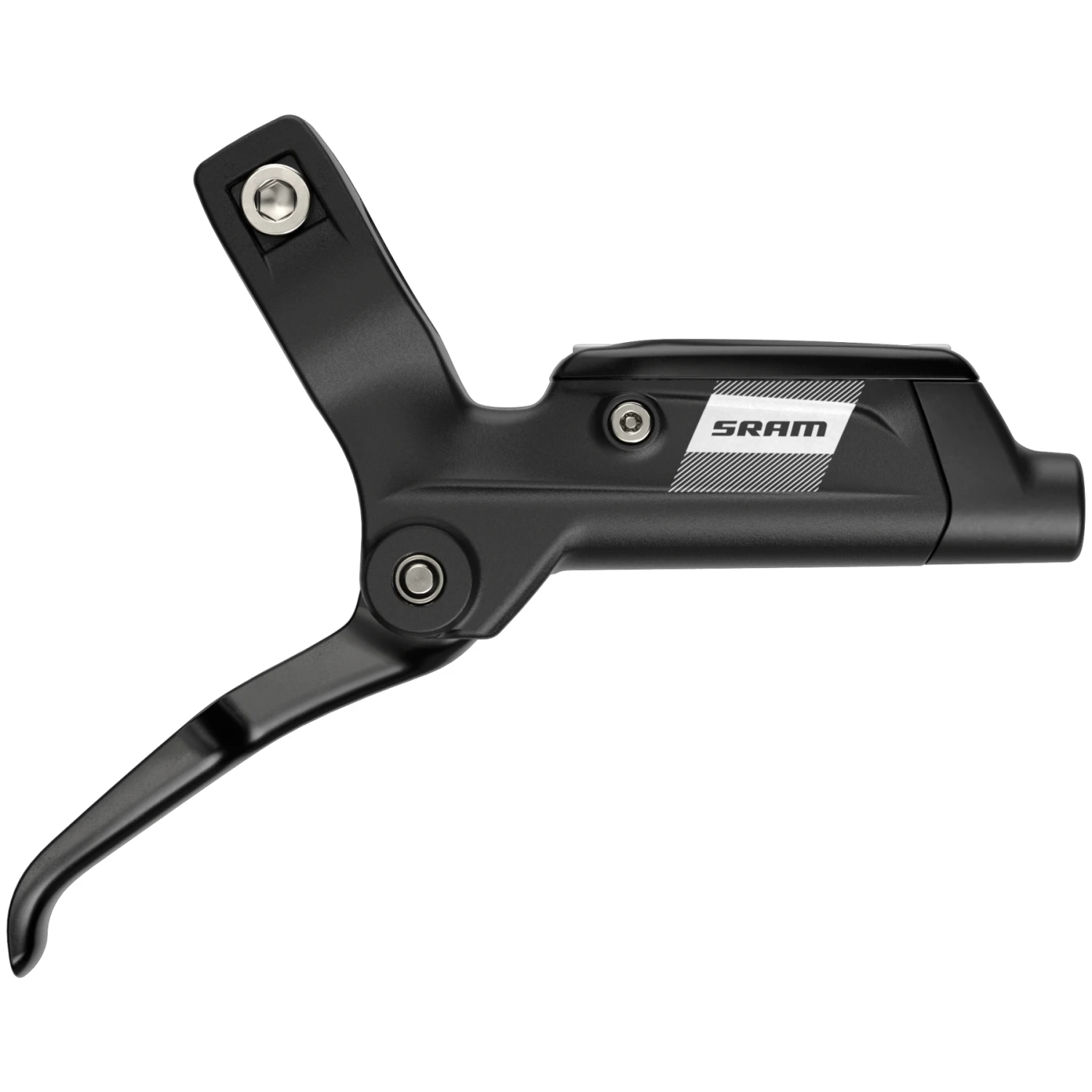

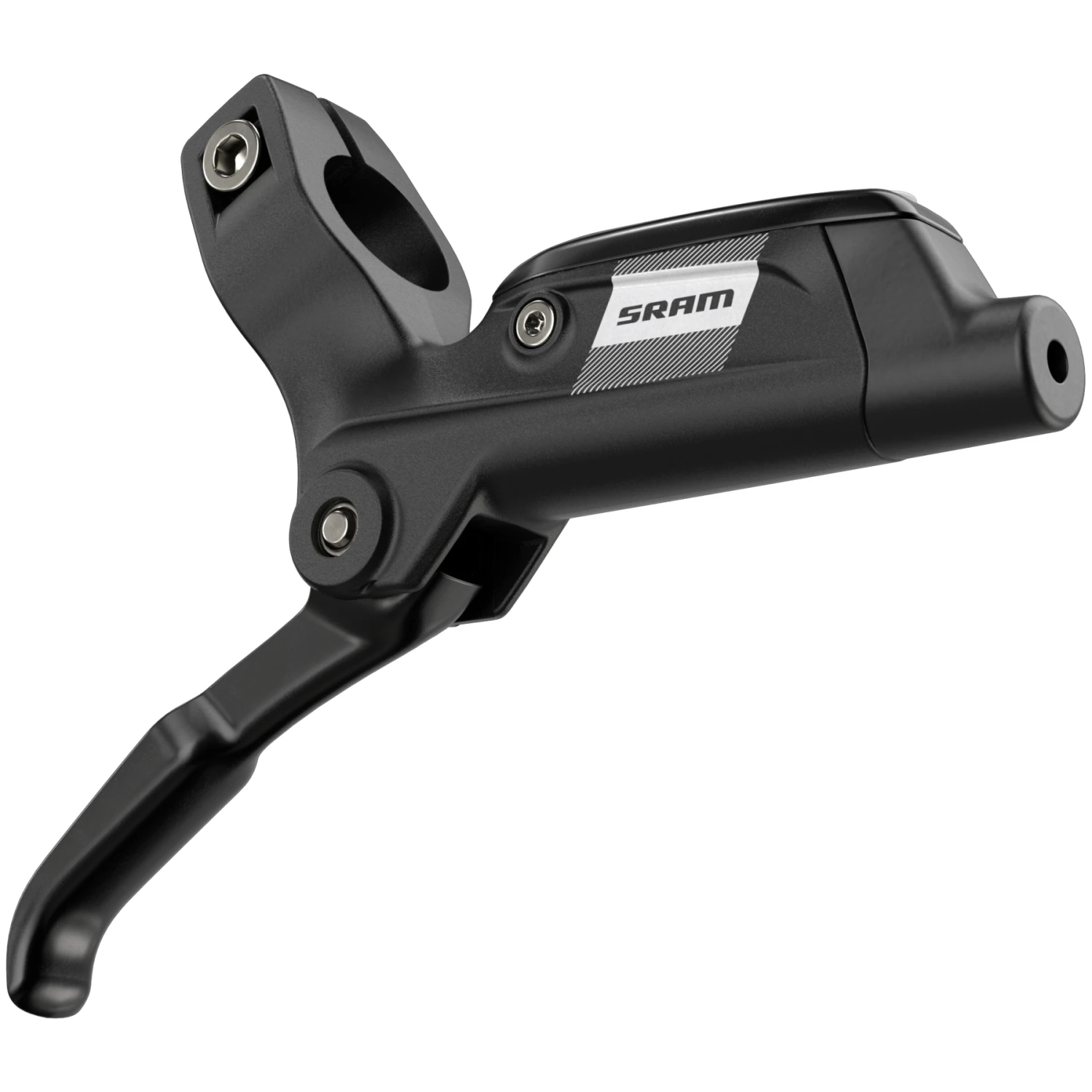

• compact brake lever body for flat handlebars
• DirectLink™ construction for precise brake feel

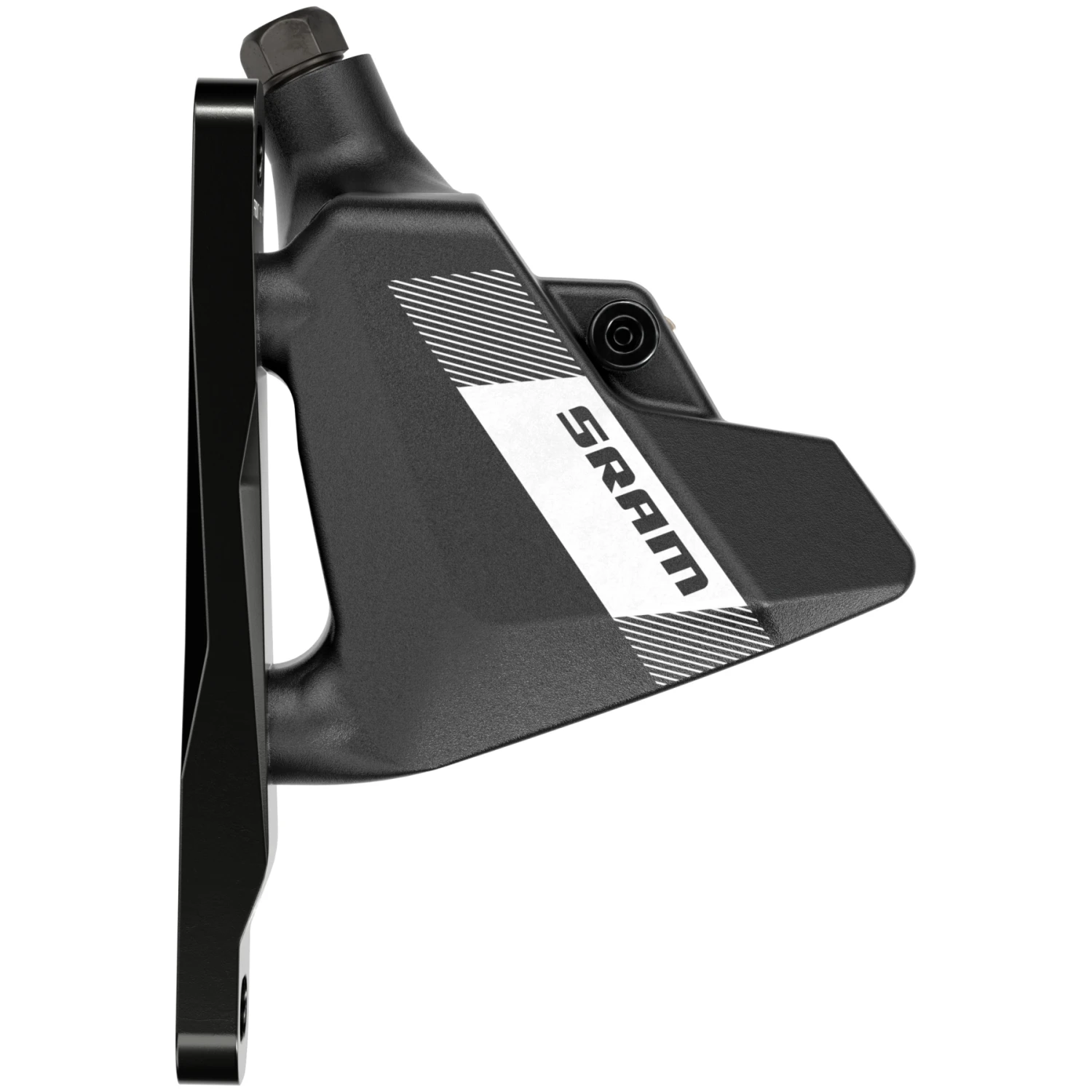

• 2-piston brake caliper for optimal deceleration
• brake pads with organic surface and steel backing plate
• design matched to Apex / Apex AXS 12-speed components

The uncompromising solution for precise control. SRAM’s DirectLink™ design provides a solid, positive brake feel as soon as the brake lever is pulled.

The synchronizing port of a hydraulic brake is the connection between the reservoir and the master cylinder bore. When the lever is pulled, a cup sleeve passes through this area and closes the opening, pressurizing the system. SRAM’s TPC Plus system for closing the synchronizing port features durable seals and an ultra-soft cylinder bore surface for reliable and consistent braking performance.

The special brake lever design features an optimized bladder shape that helps regulate and reduce air bubbles. Air is pumped out of the lever and brake fluid goes exactly where it is needed. The result is improved back pressure relief for reliable and consistent braking performance.

• brake lever blade: aluminum (stamped)
• brake lever housing, caliper: aluminum (cast)
• brake caliper pistons: phenolic plastic
• hardware: steel

brake lever + brake caliper (incl. brake pads)
