SRAM CODE R Disc Brake – Set – Diffusion Black

Better, stronger, faster!

The SRAM CODE R is an impeccable combination of power, modulation and consistency introduced in the SRAM Guide brake series, which was developed for trail and enduro applications, has made converts of some of the world’s best downhill racers. But there is an increasing need for more power and more control, as the definition of “possible” continues to change. The all-new Code brake is purpose built for high-performance, heavy-duty applications. Based on Guide architecture, Code’s fluid reservoir and pistons are bigger. The Code is designed to deliver massive power, predictable modulation and incredible heat management for braking control on the longest descents and under the burliest loads.

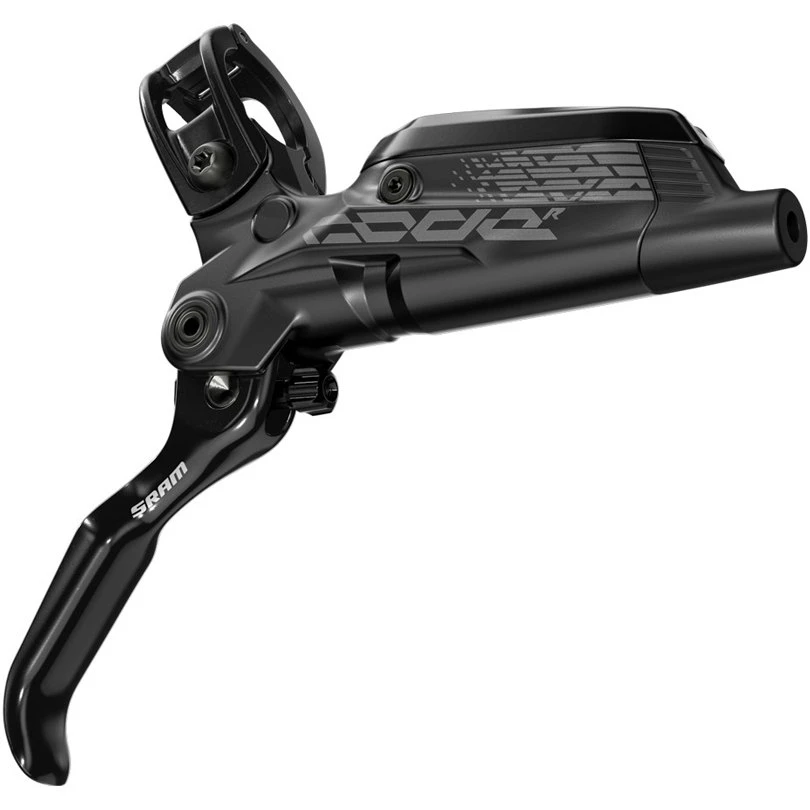

The Code R features reach adjustment.

Technology of SRAM Code R:

Bleeding Edge™

New bleed porting and fluid path make it easier to push fluid through the caliper for quick and easy bleeding; dedicated bleed adapter for the S4 caliper plugs into the bleed port and seals the system to minimize air contamination and fluid loss.

Expandable Bladder

SRAMs new lever design contains a new bladder, wich regulates and deminishes bubbles. It is shaped to drain air from the lever and transport the fluid exactly to where it is needed. As a result, an enhanced counter-pressure discharge is reached to grant reliable and constant braking performance.

Heat Shield

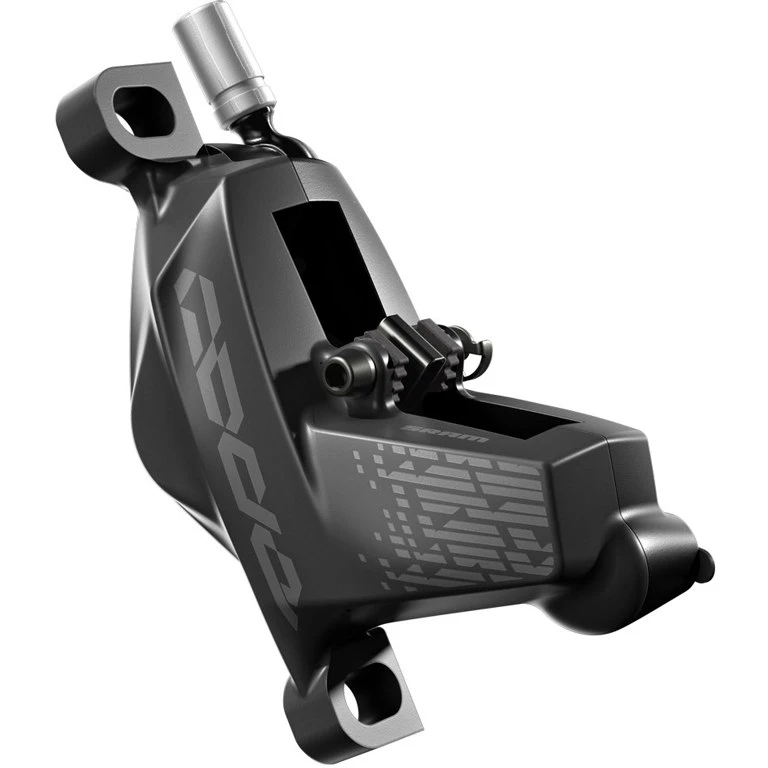

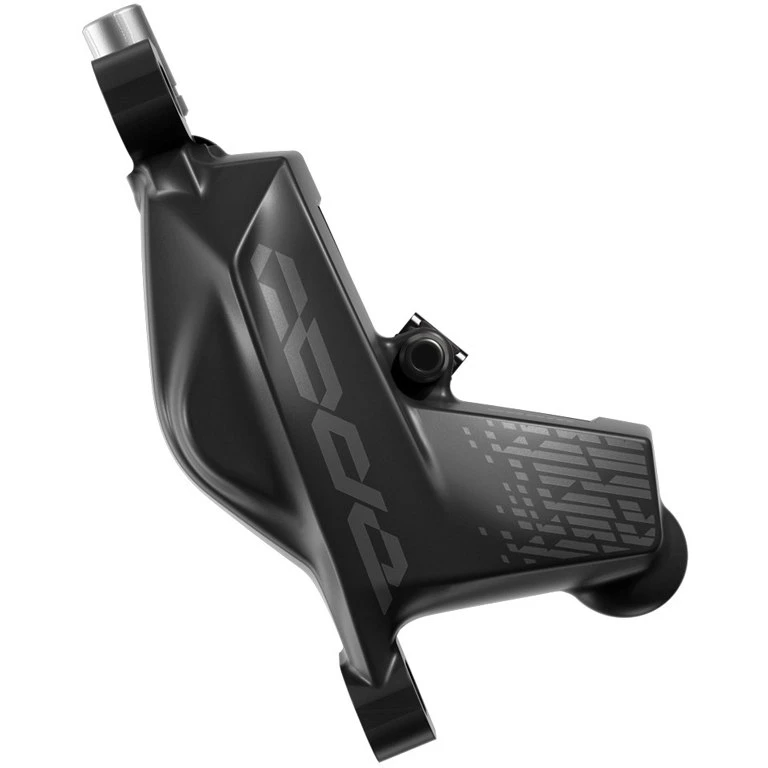

The stainless steel heat shield breaks the thermal connection between the pad and caliper body, reducing caliper fluid temperature by about 20°C even in the most extreme testing conditions.

Compatibility with MatchMaker and MMX

With Matchmaker you save weight and space at the handlebar. Matchmaker takes Avid-brakelevers, SRAM®-triggers and various RockShox® controls in form of a light and tidy clamp – this way the dream of space-savers worldwide came true. The system is available in two versions: Matchmaker™ X gives room for RockShox® Xloc and is compatible with XX- and XO brakes. The conventional Matchmaker™ works with any split clamp and RockShox® PushLoc system.

PiggyBack™ Reservoir

SRAMs current lever design is directed towards maximum performance and easy handling. The piggy-back design offers an easy and safe solution to control braking fluid and enables mounting on either side. You can swap levers to ride your bike moto-style.

Timing Port Closure

The timing port of a hydraulic brake connects the reservoir with the main actuating cylinder. While pressing the lever, a cup seal passes the segment and locks the bore, which sets the system under pressure. SRAMs new TPC Plus system has resistive seals and an ultrasmooth cylinder surface for reliable and constant braking performance.

Lever Pivot Bearings

Precision sealed bearings at the lever pivot enhance the clean, crisp lever actuation and consistent, light, onefinger feel.

DirectLink

SRAM’s DirectLink lever design produces a solid, positive feel the second you squeeze the lever to engage the brake It offers a no-nonsense solution to give you precise control.

• Brake hose: 950 mm | 1800 mm
• Brake pads: steel-backed metal sintered

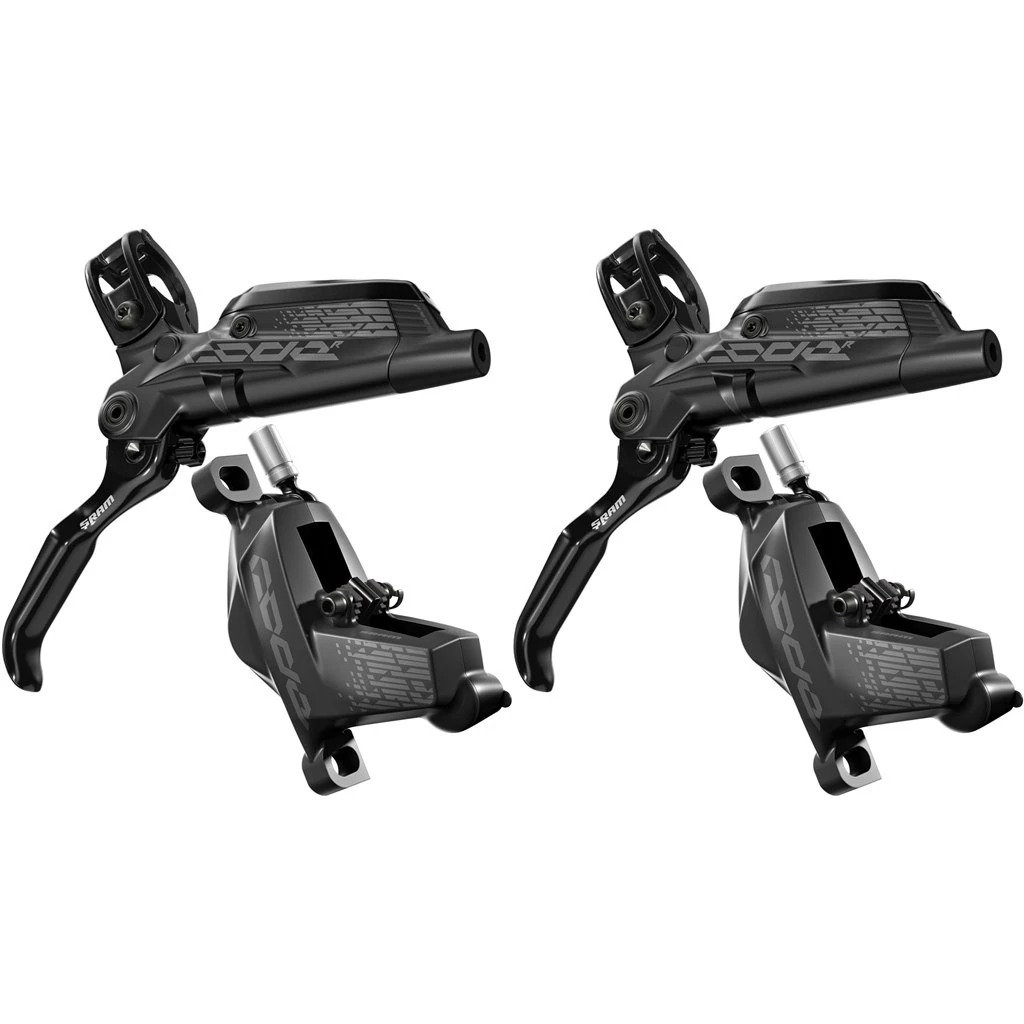

• Included in delivery: 2 brakes
• Material: caliper, lever and lever body: aluminium
• brake pistons: aluminium
• hardware: stainless steel
• Weight supplement: Brake set without discs and adapters
