Shimano XTR BL-M9100 + BR-M9110 Hydraulic Disc Brake – I-Spec EV – Flat Mount – J-Kit – Set RW

Shimano XTR M9100 – Back to where it all started.

The Shimano XTR M9100 group was developed to meet the demands of mountainbike racers at the highest level and guarantees “second to none” performance. The range offers the most versatile components for XC, Enduro and Marathon races.

It all started with the search for the ultimate MTB racing components and now the XTR continues 27 years of innovation with even more speed, focus and control. It is jam-packed with the technological advantages needed to push the boundaries of today’s insanely demanding courses. It is lighter, smoother, more durable and versatile to transfer all pedal-pounding watts into ground speed with extreme efficiency.

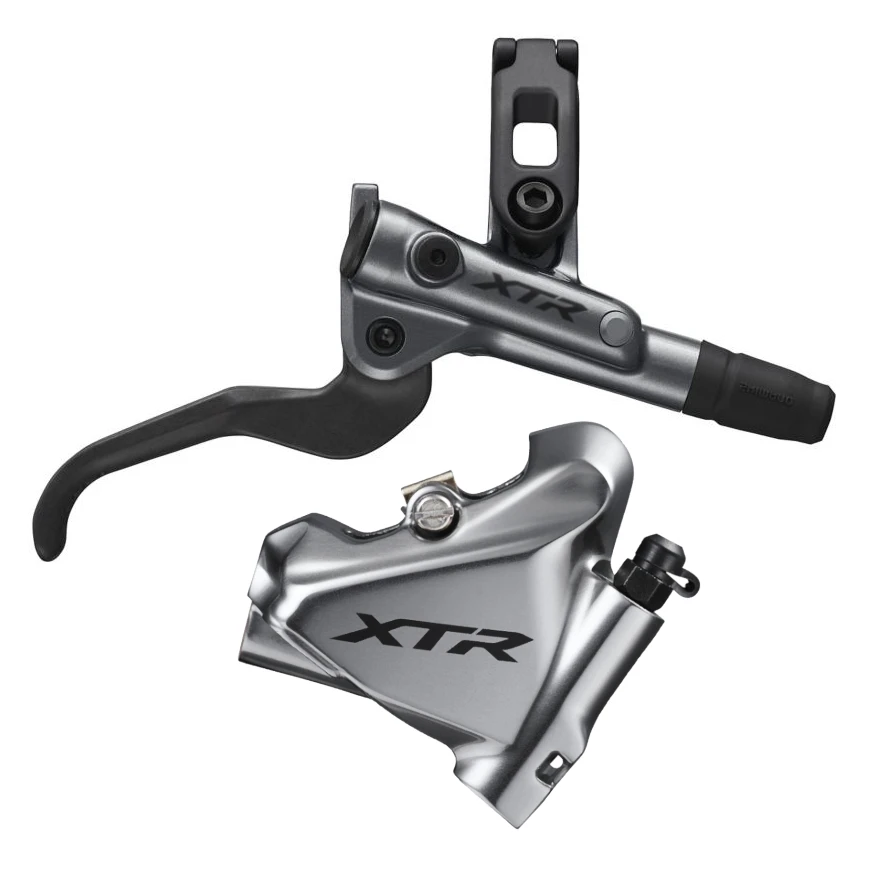

Shimano XTR M9100 Cross Country brake set consisting of the ergonomic BL-M9100 brake lever and the powerful BR-M9110 2-piston Flatmount caliper. Trouble-free maintenance is provided by the proven concept and the which simplifies brake hose exchanges.

J-Kit (Easy Hose Joint System)

At brake systems with J-Kit hose joint the brake lever features an integrated olive what makes an easy brake hose installation and removal possible.

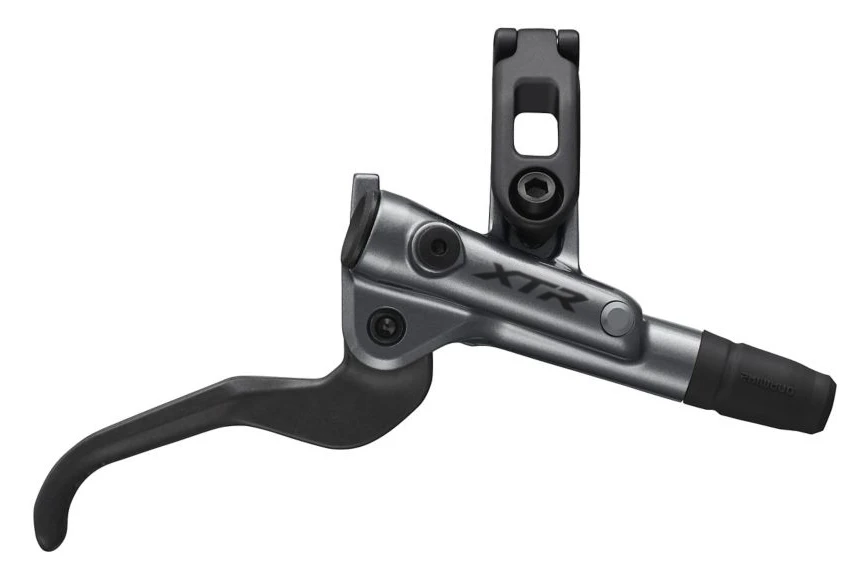

Shimano XTR BL-M9100 brake lever

The Shimano engineers have redesigned the XTR M9100 brake levers from a braking system that had been already the benchmark among mountainbike braking systems. For the BL-M9100 levers both the clamp and the lever body itself have been modified. The clamp moves further into the middle of the lever and is angled. This cleverly supports the outer end of the expansion tank directly on the handlebars and creates an additional counter bearing for lever actuation.

This significantly increases stiffness and stability, what ultimately leads to an even more direct brake feeling and improved control. So the BL-M9100 is 10 % stiffer than its predecessor, too. Of course, the reach of the lightweight XC brake lever with a magnesium housing is individually adjustable. Thanks to the design the XTR SL-M9100-I shifting levers can be mounted directly to the brake lever.

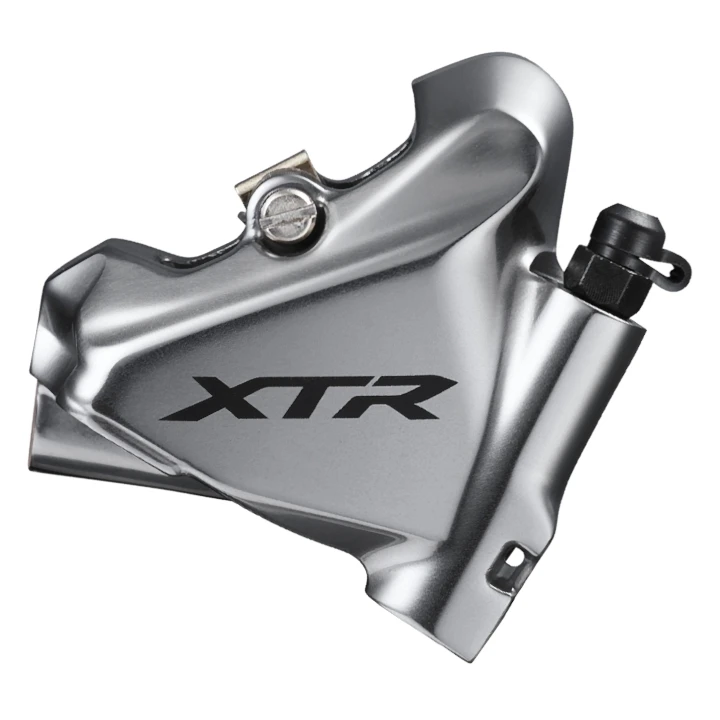

Shimano XTR BR-M9110 disc brake caliper

The BR-M9110 is the version of the Shimano XTR disc brake calipers. It has a one-piece aluminium construction and ensures significantly faster response and less free travel of the entire brake system when combined with the highly rigid braking cables. The brake pads in combination with the caliper guarantee extremely good deceleration and low weight at the same time.

Content of delivery:

hydraulic disc brake set:

• BL-M9100 brake lever
• BR-M9110 caliper incl. brake pads
• SM-BH90-SS brake hose (filled)

Material:

carbon (painted)
magnesium
aluminium (painted)
ceramic
titanium, aluminium

Compatibility:

SM-BH90-SS

Please pay attention to the maximum permitted disc diameter depending on your fork or frame.
