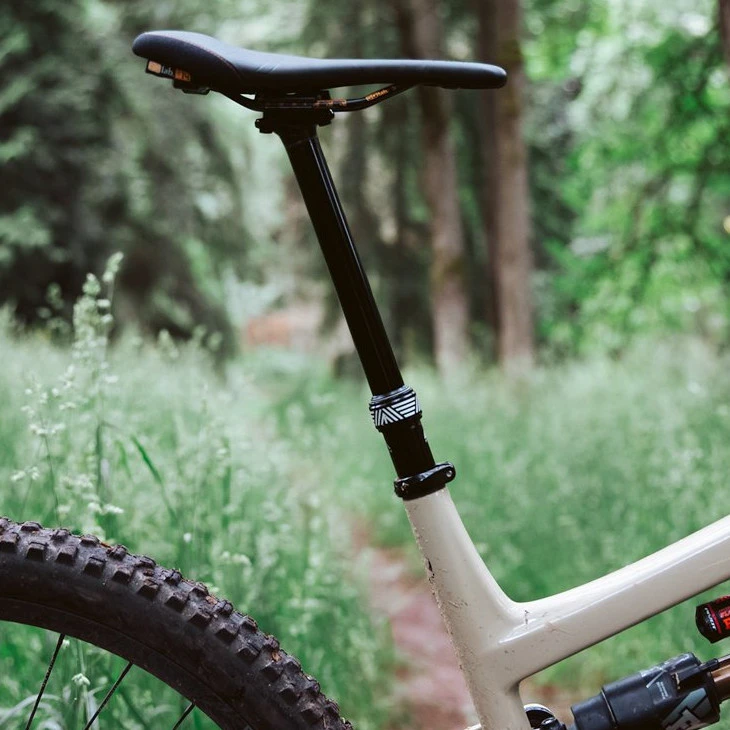

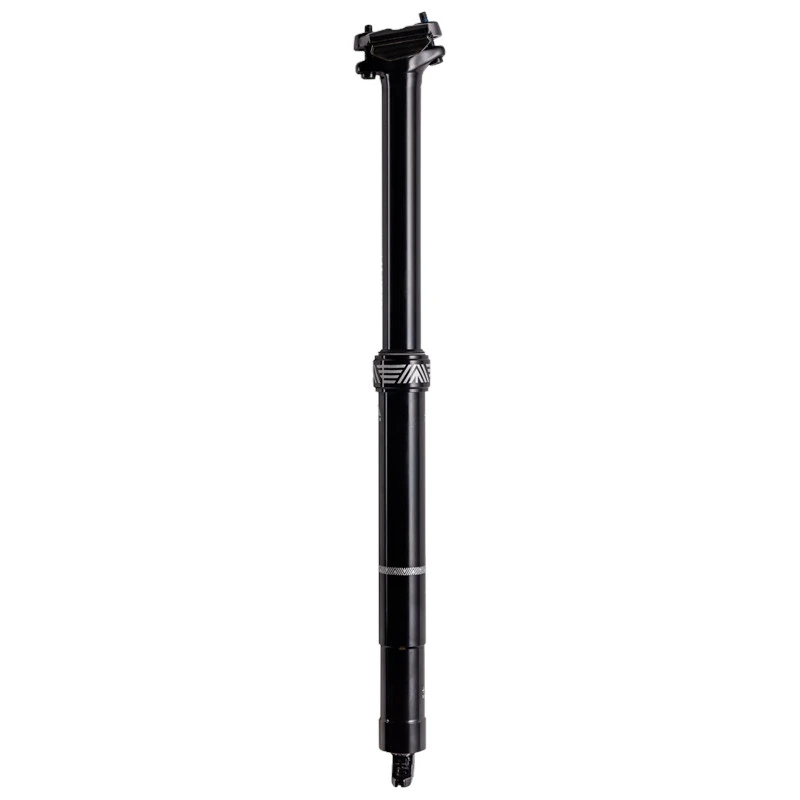

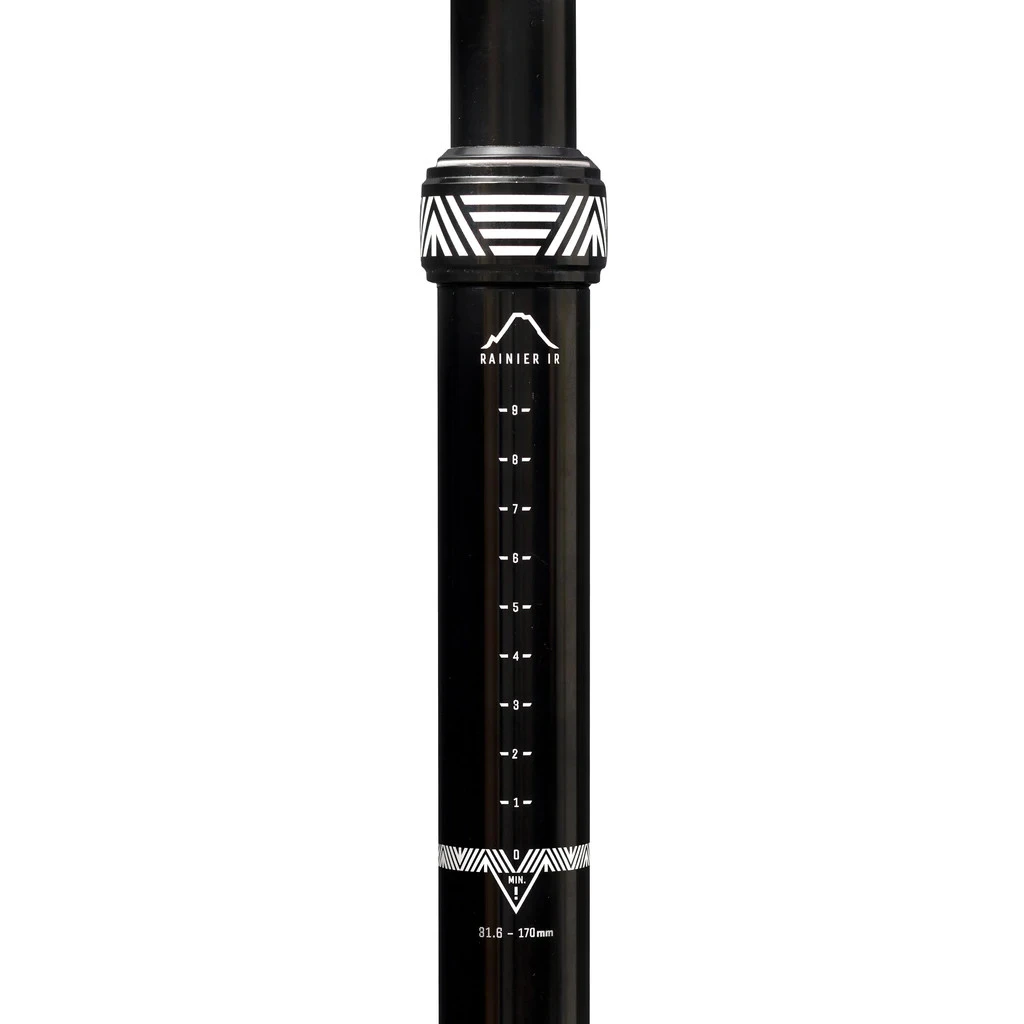

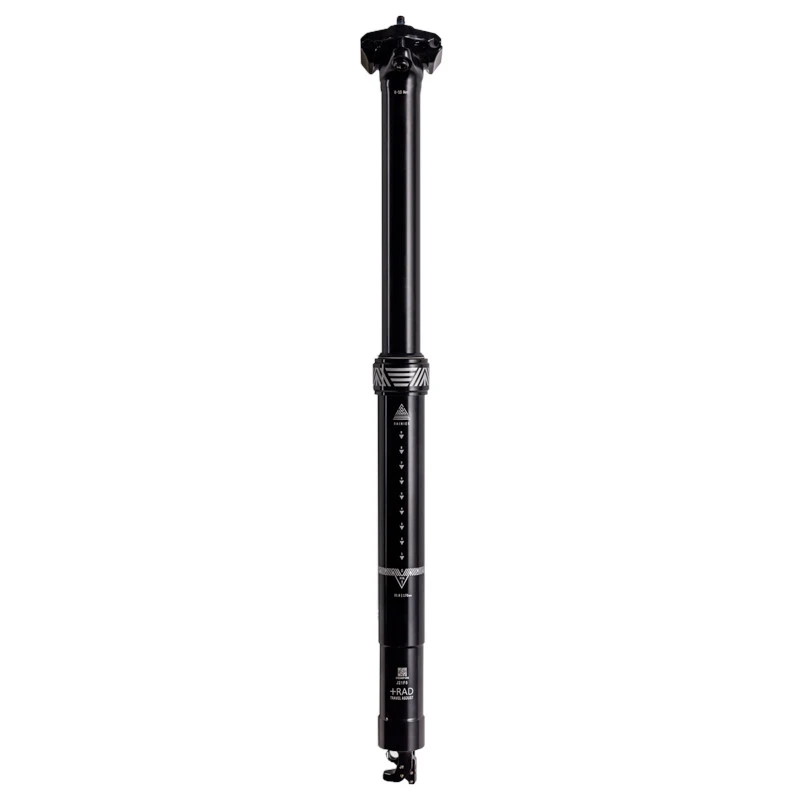

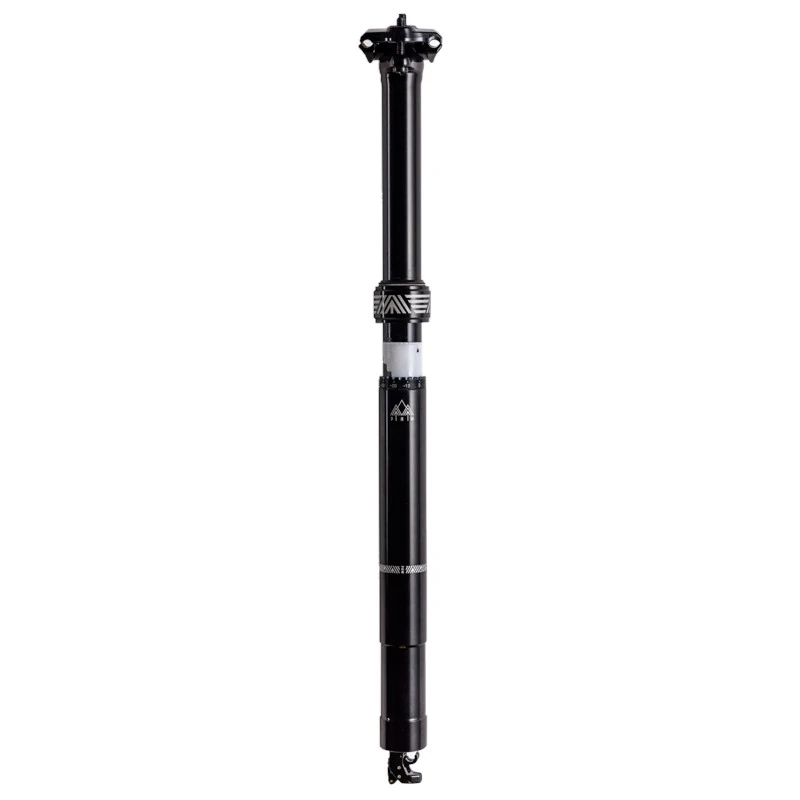

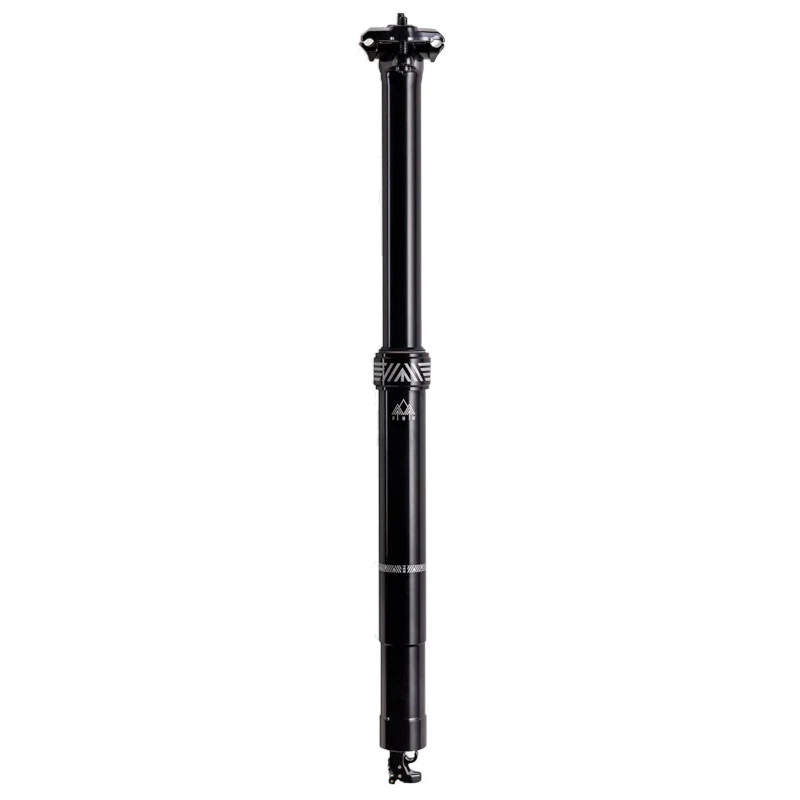

PNW Components Rainier Gen 3 Dropper Seatpost – 34.9mm

Already in the third generation, the PNW Components Rainier dropper seatpost convinces with its rigidity and functional reliability. The overall length of the seatpost made of high-strength aluminum could be shortened compared to the predecessor by up to 27.5 mm and now features a variety of variants to cover as many frame types.

For optimal adaptation to individual needs and intended use the travel of the Rainier Gen 3 Dropper Post can be shortened by up to 30 mm (in steps of 5 mm) thanks to the Tool-Less Travel Adjust. In addition, the revised, cold-resistant air pressure cartridge ensures unparalleled reliability and durability, no matter what conditions prevail on the Trail.



Technical details of the PNW Rainier dropper seatpost

• range of use: MTB
• material: aluminum 7075
• dimensions (120 / 150 / 170 / 200 mm travel):
  total length: 393 / 443 / 483 / 543 mm
  insertion length (min.): 125 /125 / 150 / 180 mm
  insertion length (max.): 223 / 248 / 268 / 300 mm
• adjustment range travel: 30 mm (tool-free, in 5 mm steps)
• diameter stanchion: 26 mm
• internal cable routing

125 mm: approx. 538 / 556 / 628 g (manufacturer’s specification)
150 mm: approx. 584 / 600 / 694 g (manufacturer’s specification)
170 mm: approx. 618 / 634 / 738 g (manufacturer’s specification)
200 mm: approx. 666 / 688 / 804 g (manufacturer’s specification)



seatpost (without remote lever, cable and cable housing)
