ONgineer LiON Smart Charger 36V – Coaxial 5,5 X 2,5 (FLX)



LiON Smart Charger – Put the lion in your pocket!

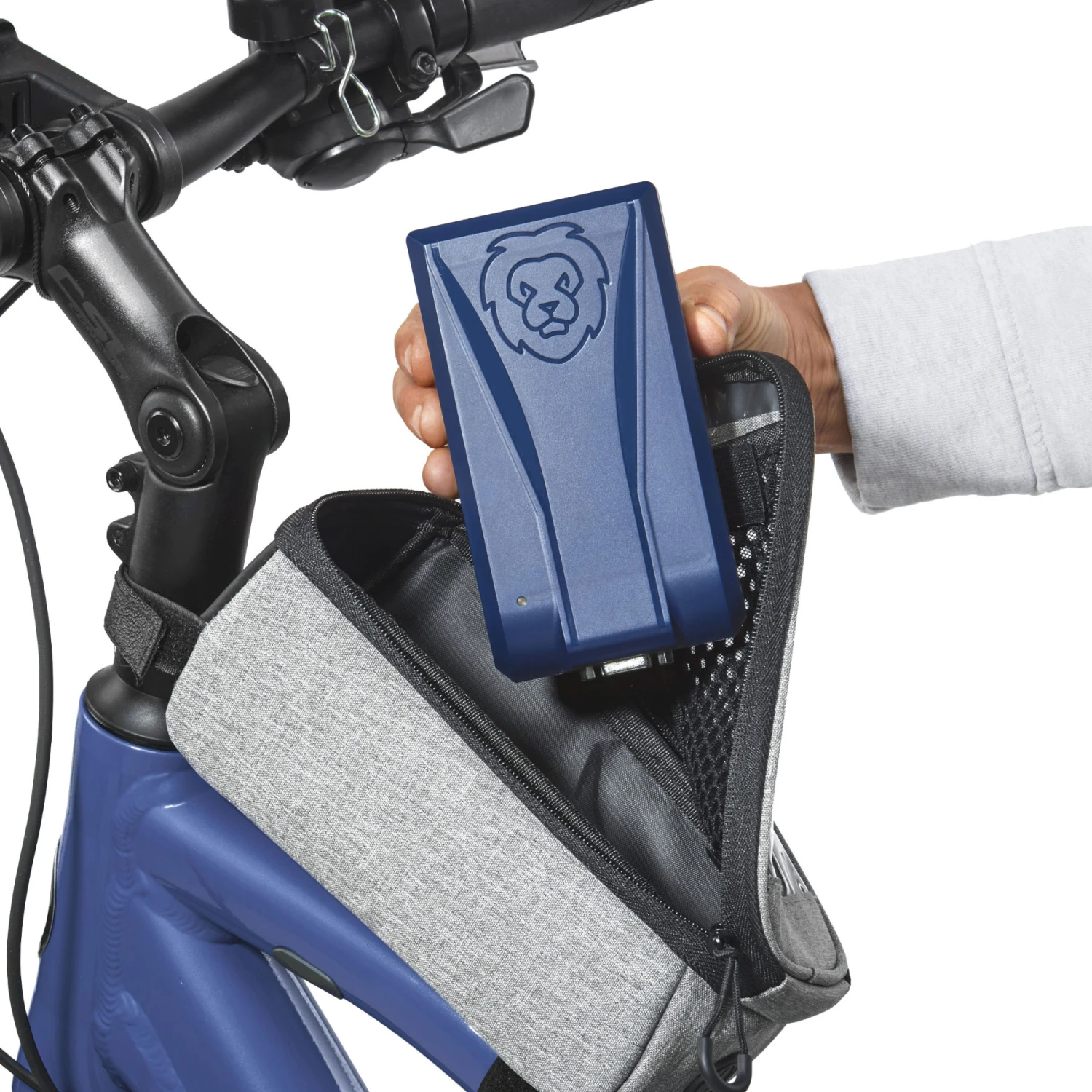

A fast charger does not always have to be big and heavy. With the intelligent LiON Smart Charger from ONgineer, the . Thanks to its rounded and compact shape, it can be stored in even the smallest bag. This makes it the perfect travel companion.

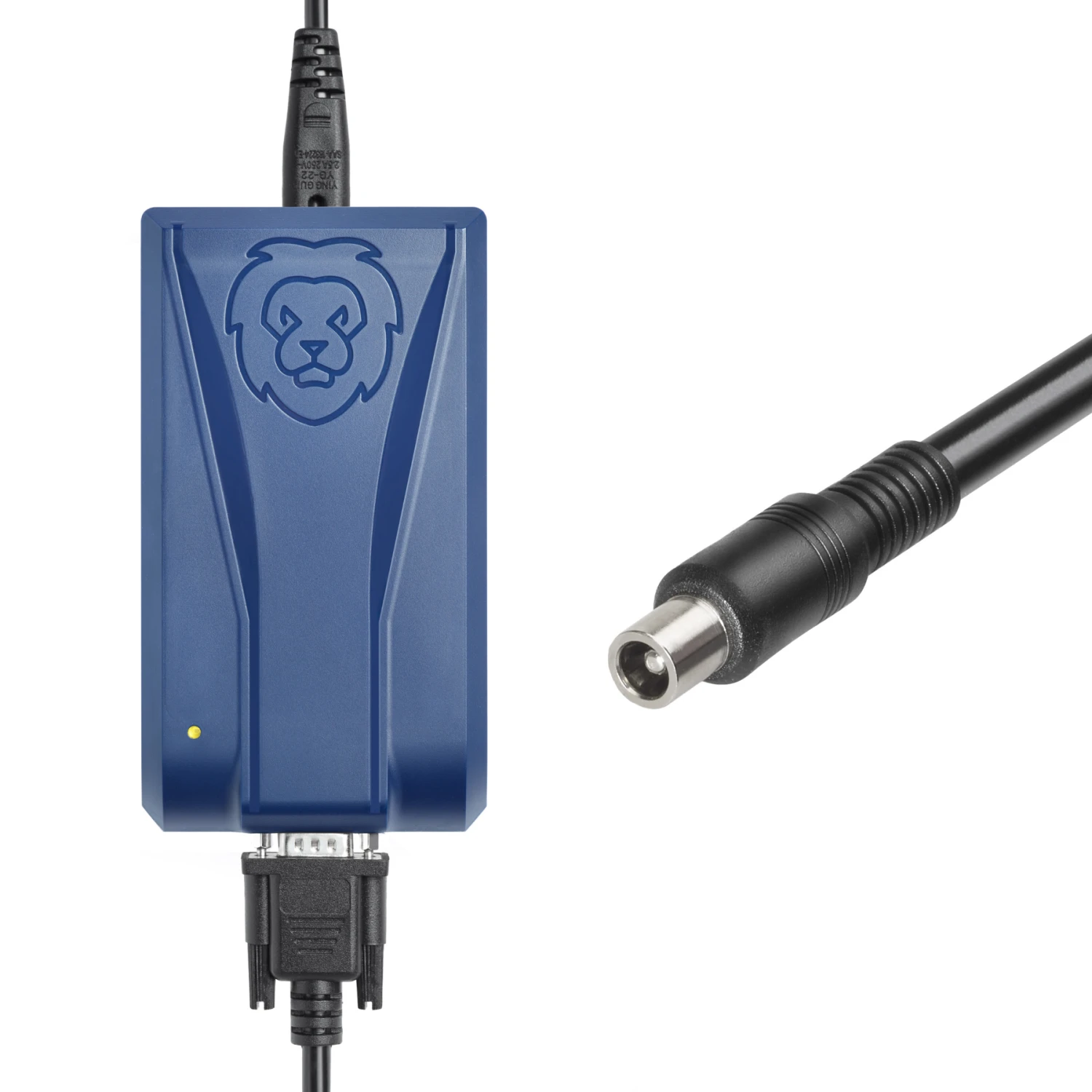

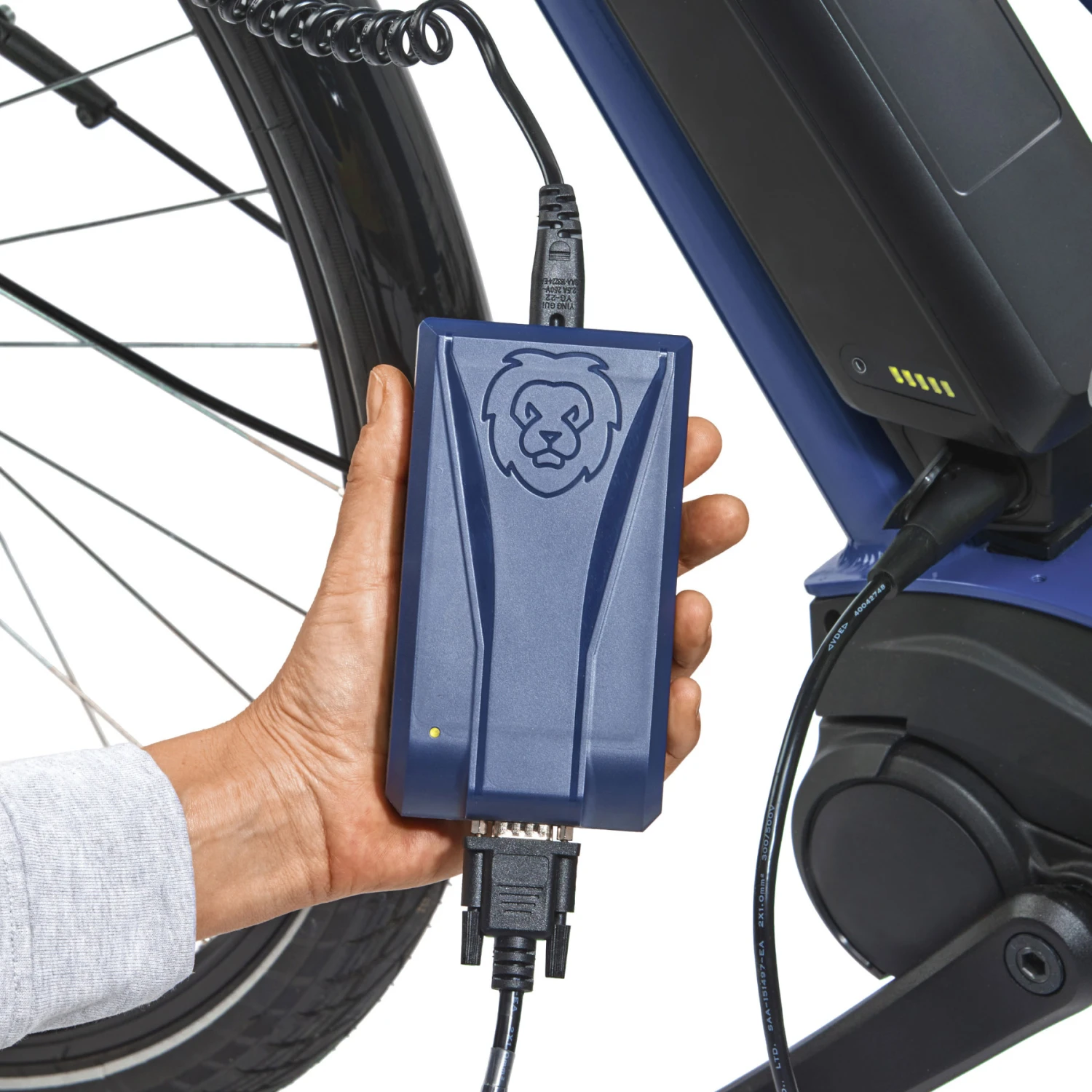

Thanks to interchangeable adapter cables, the powerful Smart Charger is able to charge most E-Bike battery systems: Ansmann, BMZ, Bosch, Brose, Specialized and many more. The ensures that even on the road, .

While an unprecedentedly high allows for significant energy savings, predefined charging scenes, which can be easily transferred from the to the charger via , offer the freedom to charge the battery gently. This significantly extends the life of expensive batteries.

The LiON Smart Charger by eliminating superfluous components in the spirit of minimizing material consumption. It does not require a large housing or an additional fan. In addition, the patented design with current electronic components and chip technologies reduces power losses during the charging process.



Technical details of the ONgineer LiON Smart Charger

• mains voltage: 220 – 240 V
• mains frequency: 50 – 60 Hz
• input current: 0.78 A
• charging current: 0.5 – 4 A
• system charging voltage: 36 V (DC)
• charging end voltage: 42 V (DC)
• power density: 6.8 W/in³
• temperature range: -5 – 40 °C
• efficiency: 94 %
• lifetime: approx. 20,000 h (manufacturer’s specs)
• weight: approx. 370 g (manufacturer’s specs)

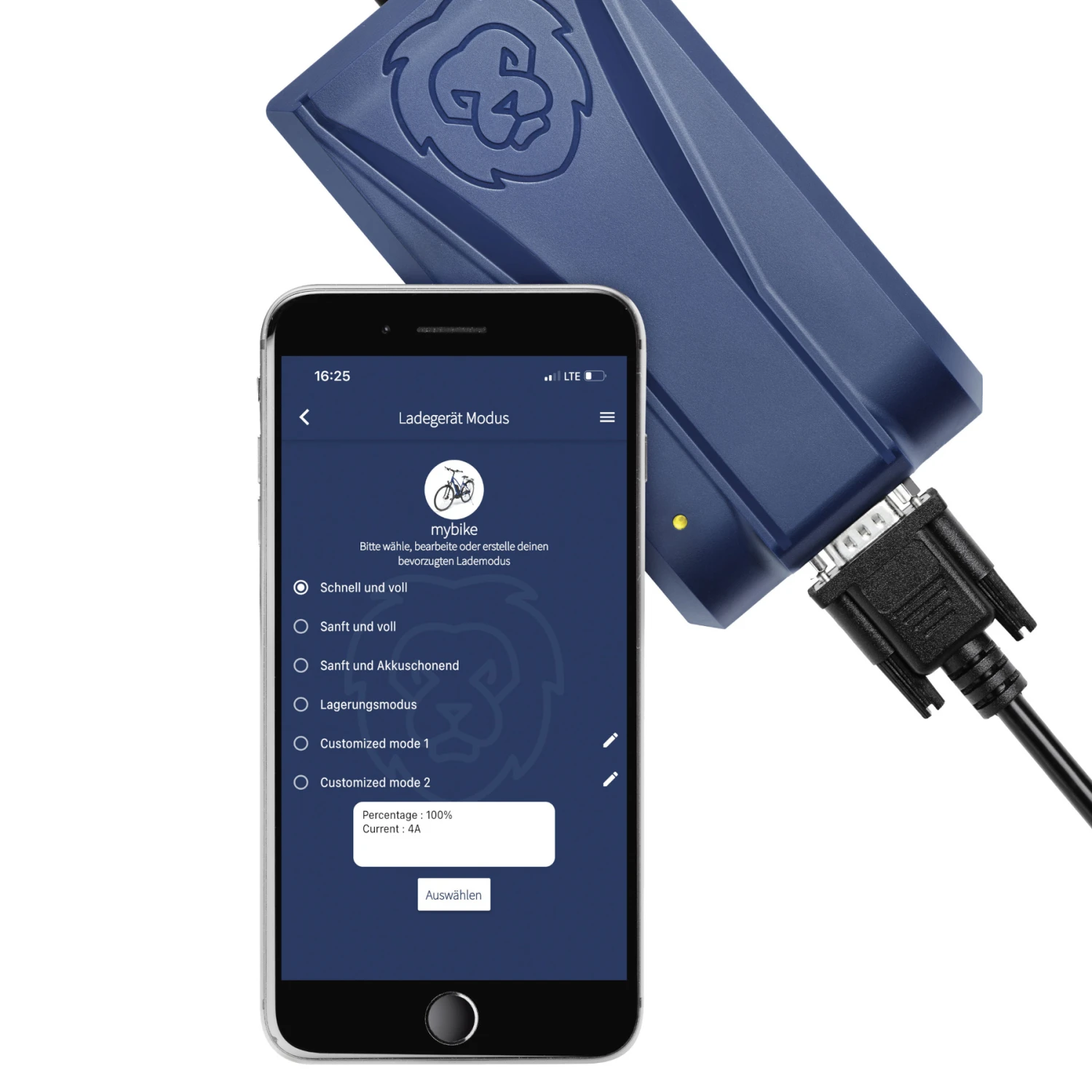

The LiON app – The smart way to charge your E-Bike

The free LiON app works on both iOS and Android platforms. The transfer of the profile set for the battery is done by simply placing the smartphone on the charger using NFC technology – without Bluetooth, without extra cables.

Functions and advantages of the LiON app:

• optimal charging of batteries for E-Bikes and E-Scooters
• management of up to 10 different batteries
• only one charger for the whole family
• preconfigured charging scenarios for daily use
• own charging scenarios for individual needs
• quick retrieval of charging statistics
• easy checking of the battery health status

The unique option of not simply “fully” charging the battery can significantly increase its service life. And when you are on the move, the LiON becomes the ideal aid when it comes to partial charging of the battery.

– Charging does not always have to be fast, in most cases a slower charging process is sufficient, which is significantly gentler on the battery.

– The slower a battery is charged, the slower the batteries it contains age.

– The battery is charged just enough to maintain a safe and gentle battery capacity. Deep discharge of the battery must be avoided, this is at the expense of service life and safety.



The LiON with its redundant protective circuitry meets all relevant safety standards and is therefore fully compatible with all approved systems.
